Gas Tandoor Pilot Assembly AS13

CH Series — Commercial Gas Tandoor Ovens

Restaurant Tandoor Oven CH02 32×32 — AS13 Compatibility

The Restaurant Tandoor Oven CH02 32 inches × 32 inches is Tandoor Morni’s entry-level commercial gas tandoor, built for small and mid-size Indian, Pakistani, and Middle Eastern restaurants. At 32×32 inches, it shares the pilot assembly architecture of all gas models in the Tandoor Morni commercial range — meaning the AS13 is the direct, exact replacement pilot assembly for the CH02. When the CH02 pilot fails to hold, goes out during service, or the thermocouple tests below 18 mV, the AS13 restores full pilot function and gas safety valve operation. The CH02 runs on propane or natural gas — the AS13 is compatible with both configurations without modification.

Natural Gas Tandoor Oven CH04 34×34 — AS13 Compatibility

The Natural Gas Tandoor Oven CH04 34 inches × 34 inches is the mid-size model in the CH Series — one inch larger in each dimension than the CH02, with a wider 17-inch mouth and deeper belly for higher output per cooking cycle. The AS13 is the factory-specified replacement pilot assembly for the CH04. Despite its name referencing natural gas, the CH04 is available factory-configured for both natural gas and propane — and the AS13 is compatible with both configurations. When installing on a natural gas CH04, the gas fitter should confirm the main valve and orifice remain in the original natural gas configuration — the pilot assembly itself requires no adjustment.

Middle Eastern Tandoor Oven CH06 36×36 — AS13 Compatibility

The Middle Eastern Tandoor Oven CH06 36 inches × 36 inches is the largest model in the CH Series — engineered for high-volume Middle Eastern, Afghani, and Levantine restaurant kitchens. At 36×36 inches, the CH06 generates substantial thermal mass through its clay interior and large cavity, but the pilot assembly that governs gas safety and ignition is the same specification used across the entire commercial gas tandoor range. The AS13 is the correct replacement pilot assembly for the CH06. The larger oven size does not affect pilot assembly specification.

T Series — Commercial Gas Tandoor Ovens

Indian Tandoor Oven T02 32×32 — AS13 Compatibility

The Indian Tandoor Oven T02 32 inches × 32 inches is Tandoor Morni’s compact T Series entry-level gas tandoor — purpose-built for Indian restaurants that require a certified indoor gas tandoor in a smaller kitchen footprint. Its pilot assembly specification is identical to that of the CH Series and A Series ovens, making the AS13 the correct and only approved replacement pilot assembly for the Indian Tandoor Oven T02. Thermocouple failure on the T02 typically presents as a pilot that lights but drops immediately on knob release.

CSA ETL NSF Tandoor Oven T04 34×34 — AS13 Compatibility

The CSA ETL NSF Tandoor Oven T04 34 inches × 34 inches carries the most extensive certification credentials in the Tandoor Morni commercial gas range — CSA, ETL, and NSF certifications, meeting the most stringent US health department, building code, and food safety requirements simultaneously. Critically, all three of these certifications apply to the complete gas assembly as a system — including the pilot assembly. Using the genuine AS13 replacement on the T04 maintains the oven within its certified specification. Fitting a non-approved aftermarket pilot assembly on a CSA ETL NSF certified unit can invalidate one or more of its certifications.

Punjabi Tandoor Oven T06 36×36 — AS13 Compatibility

The Punjabi Tandoor Oven T06 36 inches × 36 inches is the flagship of the T Series — a 36×36 commercial gas tandoor with the deep belly and wide mouth needed to produce authentic Punjabi-style naan, tandoori chicken, and seekh kebabs at high volume. The T06 is a high-demand oven that in many restaurant kitchens runs continuously from lunch through dinner service. This operating pattern accelerates thermocouple wear, which is why proactive annual replacement with the AS13 is particularly recommended for the T06.

A Series — CSA Z83.11 Certified Gas Tandoor Ovens

Propane Gas Tandoor Oven A02 32×32 — AS13 Compatibility

The Propane Gas Tandoor Oven A02 32 inches × 32 inches is Tandoor Morni’s most popular CSA Z83.11 certified indoor gas tandoor and the most widely installed gas tandoor oven in small and mid-size Indian and Pakistani restaurants across the United States. The AS13 is the factory-specified replacement pilot assembly for the Propane Gas Tandoor Oven A02. On an A02 running daily restaurant service, the thermocouple typically completes its service life at 2–4 years. When the A02 pilot fails to hold after 45 seconds, or the millivolt output tests below 18 mV, order the AS13 — it is the only part that maintains full CSA Z83.11 compliance on replacement.

Stainless Steel Tandoor Oven A04 34×34 — AS13 Compatibility

The Stainless Steel Tandoor Oven A04 34 inches × 34 inches is the A Series mid-tier model — distinguished from the A02 and A06 by its stainless steel inner pot, which offers easier cleaning, greater durability, and is particularly suited to high-turnover kitchens and thick flatbread production. The stainless steel interior does not affect the pilot assembly specification — the gas control system is identical across all A Series models. The AS13 is the correct replacement pilot assembly for the Stainless Steel Tandoor Oven A04.

Large Indoor Tandoor Oven A06 36×36 — AS13 Compatibility

The Large Indoor Tandoor Oven A06 36 inches × 36 inches is the largest and highest-output model in the A Series — the standard specification for hotel restaurants, grand banquet halls, high-volume Indian restaurant chains, and fine dining open kitchen installations. At $2,999, pilot assembly failure that takes the A06 out of service mid-shift represents a severe operational and revenue impact. The AS13 is the factory-specified replacement pilot assembly for the Large Indoor Tandoor Oven A06. For multi-site operators who deploy multiple A06 units across locations, Tandoor Morni recommends stocking one AS13 unit on-site per two ovens.

The AS13 pilot assembly is designed for installation by a licensed gas fitter. For a full explanation of how the pilot assembly system works before starting, see the Gas Tandoor Pilot Assembly guide. The procedure is straightforward and typically takes 30–60 minutes on a cooled oven. Do not attempt installation while the oven is hot or while the main gas supply is open.

Step 1 — Shut down oven and close gas supply

Turn the oven control knob to OFF. Close the main gas supply valve at the wall. Allow the oven to cool completely — minimum 2 hours after last use. The clay pot and copper exterior retain heat for extended periods; do not proceed until the oven is fully cool to the touch. Minimum cooling time: 2 hours.

Step 2 — Locate and access the existing pilot assembly

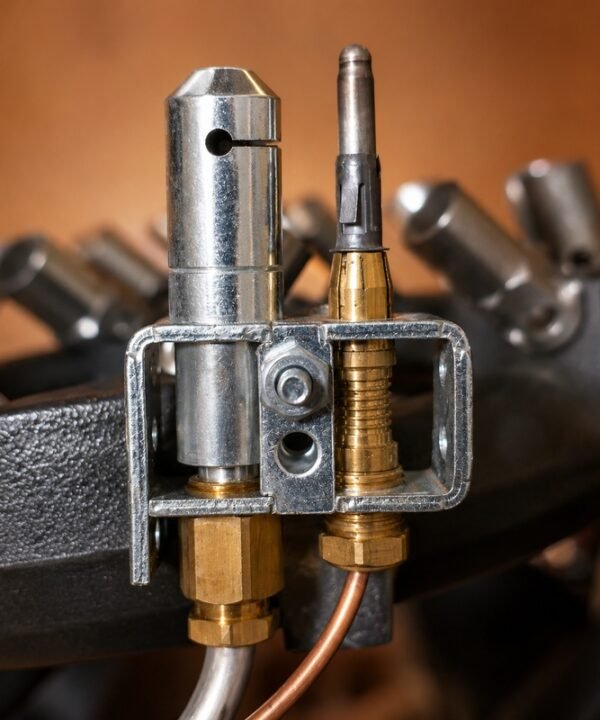

The pilot burner is positioned at the base of the clay or stainless pot interior, accessible through the oven mouth. The thermocouple connects to the gas valve body at a small nut fitting on the valve’s side. Trace the pilot gas line from the pilot burner back to its valve connection point.

Step 3 — Disconnect the existing assembly

Using an appropriately sized spanner, carefully loosen and remove the thermocouple connection nut at the gas valve. Disconnect the pilot gas line at its valve fitting. Remove the pilot burner from its mounting location at the base of the pot. Note the exact routing of the pilot gas line before removal — the AS13 replacement must follow the same path.

Step 4 — Install the AS13 replacement assembly

Mount the AS13 pilot burner in the correct position at the base of the pot. Route the thermocouple and pilot gas line following the same path as the removed assembly. Connect the thermocouple nut to the gas valve — hand-tighten then snug with a spanner. Do not overtighten; thermocouple nuts are typically brass and will distort. Connect the pilot gas line. Confirm the thermocouple tip is positioned directly in the path of the pilot flame.

Step 5 — Open gas supply and check all connections for leaks

Open the main gas supply valve. Apply approved gas leak detector solution (or soapy water) to every connection made during installation. Inspect for any bubble formation indicating a gas leak. If a leak is detected, immediately close the gas supply and re-tighten the relevant fitting before proceeding. Do not proceed with any leak present.

Step 6 — Light the pilot and test the hold function

Turn the control knob to PILOT, depress and hold, and ignite the pilot burner. Hold for a full 45 seconds. Slowly release the knob — the pilot must remain lit without manual support. This confirms the AS13 thermocouple is at operating temperature and generating sufficient voltage to hold the safety valve open independently. If the pilot fails to hold, check thermocouple tip position relative to the flame and repeat. Hold 45 seconds minimum.

Step 7 — Commission to full operating temperature and verify

Turn the control knob to the desired operating heat setting. Confirm the main burner ignites cleanly from the pilot. Bring the oven to full operating temperature (700–900°F) and verify that the pilot flame remains stable throughout the heat-up cycle. The AS13 replacement is fully commissioned and the oven is ready for service. Allow 20–30 minutes to operating temperature.
